JDP Series DC Frequency Variation Pump Custom

Home / Products / Aquarium Equipment / Frequency Pump / JDP Series DC Frequency Variation Pump

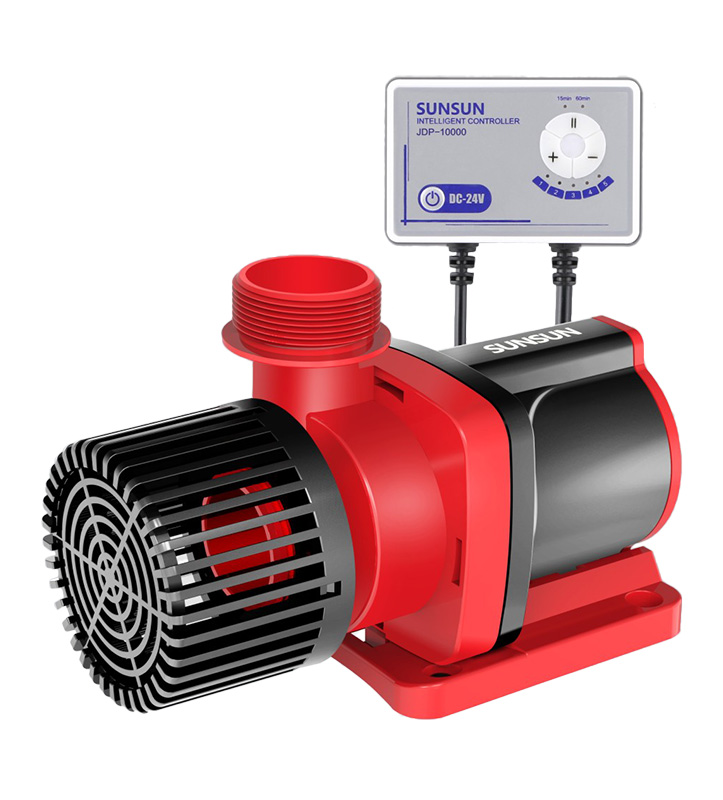

JDP Series DC Frequency Variation Pump

JDP Series DC Frequency Variation Pump

Installation video

FEATURES

  • The layout of multi-function intelligent control can adjust flow and power.
  • The water pump uses the latest three-phase power with brushless and sensorless control technology, which can save energy up to 50%.
  • Low-voltage 24V, safe and converse electricity.
  • Using closed impeller design can be economically efficient to improve lift and output.
  • Super silence, and it can be used both in fresh and sea water.
  • It adopts ceramic shaft, which is hard-wearingand rustless.
  • Long service life, no copper element.
  • The outlet realizes multistage over, which is suitable for a variety of pipe diameter connection.
  • Separation of electric drive is more safe and stable.
  • Thelocked-rotor protection function(immediately cut off power after impeller jammed.)



Model

Voltage

Stall

Power

H-max

Output

Hose Adapter

Cable length

Weight

Dimensions L×W×H

JDP-1000

DC 24V

/

12W

2.2m

1000L/h

12/16/20mm

2m

0.55kg

140×61×84mm

JDP-1500

DC 24V

/

18W

2.7m

1500L/h

12/16/20mm

2m

0.55kg

140×61×84mm

JDP-2000

DC 24V

/

24W

3.2m

2000L/h

12/16/20mm

2m

0.55kg

140×61×84mm

JDP-3500

DC 24V

5 levels

10W~30W

1.7m~3.5m

2300L/h~3500L/h

20/25/32mm

2.5m

1.1kg

155×72×97mm

JDP-6000

DC 24V

5 levels

13W~60W

1.6m~5.0m

3000L/h~6000L/h

20/25/32mm

2.5m

1.9kg

175×83×113mm

JDP-10000

DC 24V

5 levels

20W~100W

2.2m~5.8m

6000L/h~10000L/h

20/25/32/38/50mm

5m

2.9kg

195×95×125mm

JDP-18000

DC 24V

5 levels

40W~160W

2.8m~6.8m

10000L/h~18000L/h

20/25/32/38/50mm

5m

4kg

230×120×150mm
