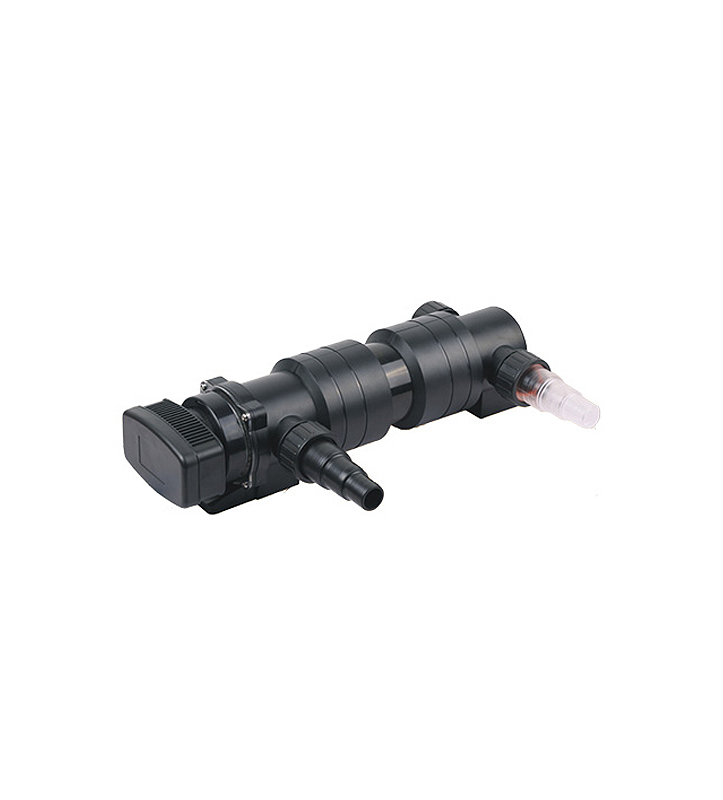

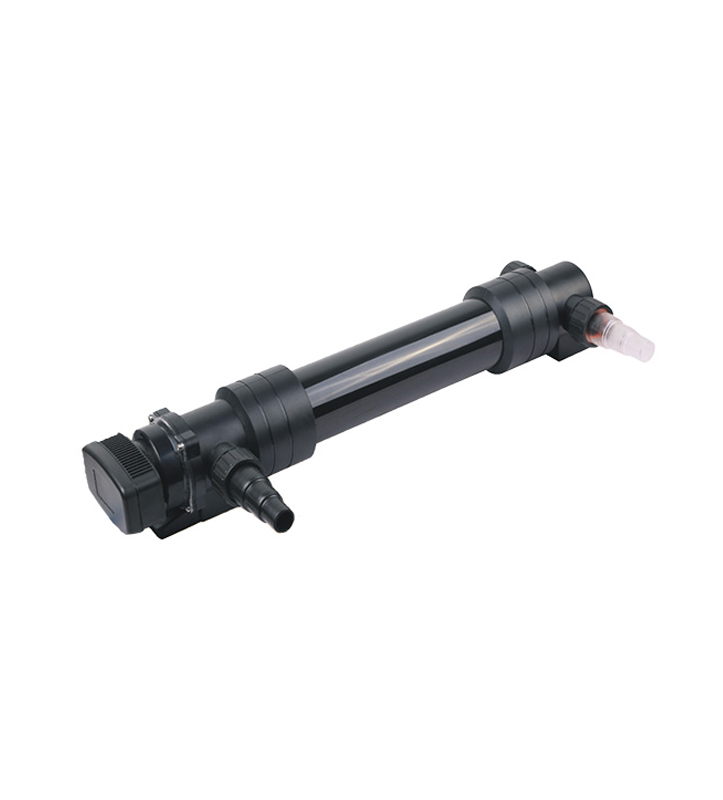

CUV Series UV-C Clarifiers CUV-618/624 CUV-636

CUV Series UV-C Clarifiers CUV-618/624 CUV-636

Installation video

FEATURES

●This equipment can mot be used under the water.

●This dirtiness on the quartz tube will influence the effect of the equipment, please clean the quartz tube in time.

●The UV light tube should be replaced after 8000 hours.

●Please do not watch UVC directly or let the skin approach to the UVC.



Model

CUV-618

CUV-624

CUV-636

CUV-655

CUV-672

CUV-6110

Power Consumption(W)

22W

26W

40W

55W

80W

110W

UV-C(W)

18W

24W

36W

55W

2x36W

2x55W

UV-C(%)8000hours

85

85

85

85

85

85

Capacity(L)

25000

40000

55000

65000

90000

120000

Max Pressure(bar)

1.0

1.0

1.0

1.0

1.0

1.0

Through Flow(L/h)

3000

5000

7000

8000

8000

8000

Inletoutlet Adapter

25/32/38mm

25/32/38mm

25/32/38mm

25/32/38mm

25/32/38mm

25/32/38mm

Cable Length

5m

5m

5m

5m

2×5m

2×5m

Length(mm)

512mm

512mm

550mm

690mm

1030mm

1310mm


Sensen Group Co., LTD is a leading CUV Series UV-C Clarifiers CUV-618/624 CUV-636 suppliers and CUV Series UV-C Clarifiers CUV-618/624 CUV-636 factory in China, we are actively creating a new industry-leading retail model, integrating online and offline, developing and promoting the "Sensen House" APP, and extending the experience and services of Sensen products to every consumer. We will promote the brand awareness of Sensen in an all-round way and actively lead the development of the industry.
